新一代大数据计算引擎 Flink从入门到实战 (20) - 项目实战(6)- 功能2

1 用户 id 和域名映射

create table user_domain_config(
id int unsigned auto_increment,
user_id varchar(50) not null,
domain varchar(50) not null,
primary key (id)
)


insert into user_domain_config(user_id,domain) values('8000000','v1.go2yd.com');
insert into user_domain_config(user_id,domain) values('8000000','v2.go2yd.com');
insert into user_domain_config(user_id,domain) values('8000000','v3.go2yd.com');
insert into user_domain_config(user_id,domain) values('8000000','v4.go2yd.com');
insert into user_domain_config(user_id,domain) values('8000000','vmi.go2yd.com');

2 功能二

  • 在做数据清洗的时候,不仅需要处理 row 日志,还需要关联 MySQL 表里的数据。
  • 自定义一个 Flink 去读 MySQL 数据的数据源,然后把2个 Stream 关联起来。

2.1 自定义数据源

package test.flink.scala.scalaproject

import java.sql.{Connection, DriverManager, PreparedStatement}

import org.apache.flink.configuration.Configuration
import org.apache.flink.streaming.api.functions.source.{RichParallelSourceFunction, SourceFunction}

import scala.collection.mutable

class MySQLSource extends RichParallelSourceFunction[mutable.HashMap[String,String]]{

    var connection:Connection = null
    var ps:PreparedStatement = null
    val sql = "select user_id,domain from user_domain_config"

    // 建立连接
    override def open(parameters: Configuration): Unit = {
        val driver = "com.mysql.jdbc.Driver"
        val url = "jdbc:mysql://localhost:3306/flink_mooc"
        val user = "root"
        val password = "root"
        Class.forName(driver)
        connection = DriverManager.getConnection(url,user,password)

        ps = connection.prepareStatement(sql)
    }

    override def close(): Unit = {
        if(ps != null){
            ps.close()
        }

        if(connection != null){
            connection.close()
        }

    }


    override def run(sourceContext: SourceFunction.SourceContext[mutable.HashMap[String, String]]): Unit = {
        val res = ps.executeQuery()
        val resMap = new mutable.HashMap[String,String]()
        while (res.next()){
            resMap.put(res.getString("domain"),res.getString("user_id"))
        }
        sourceContext.collect(resMap)
    }

    override def cancel(): Unit ={

    }
}

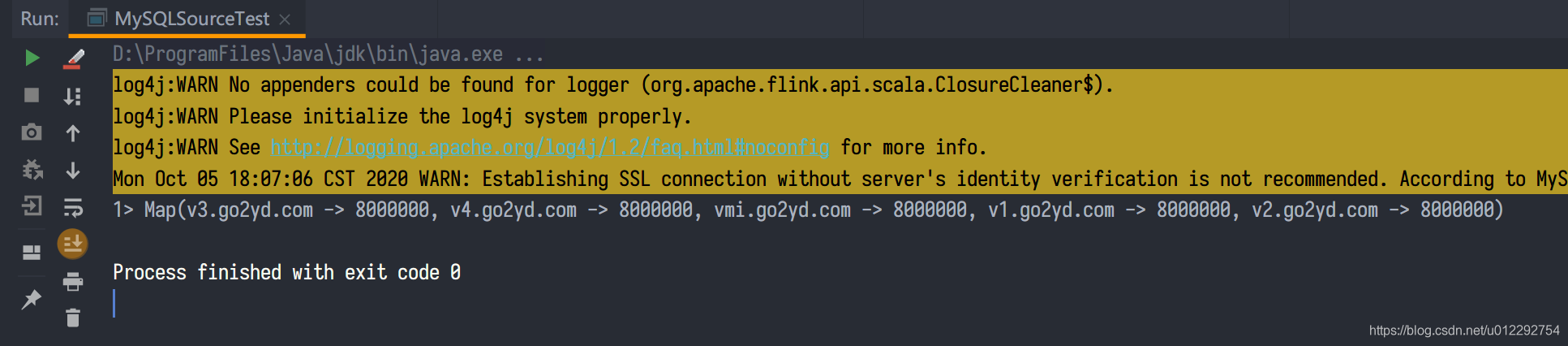

  • 测试
package test.flink.scala.scalaproject

import org.apache.flink.api.scala.createTypeInformation
import org.apache.flink.streaming.api.scala.StreamExecutionEnvironment

object MySQLSourceTest {
    def main(args: Array[String]): Unit = {
        val env = StreamExecutionEnvironment.getExecutionEnvironment

        val data = env.addSource(new MySQLSource).setParallelism(1)

        data.print()

        env.execute("MySQLSourceTest")
    }

}

在这里插入图片描述
